Low-clearance cars are loaded onto carriers very differently than standard sedans or SUVs. When a vehicle sits 4 or 5 inches off the ground, small mistakes turn into cracked splitters, crushed exhausts, or scraped undertrays.
A typical passenger car has about 7 inches of ground clearance. A 2023 Corvette Stingray sits around 5.3 inches. A Lamborghini Huracán drops closer to five inches. That difference forces a completely different loading strategy.
If you are shipping a performance car, you are likely wondering:
Will the front splitter scrape going up the ramp?
Can the middle of the car bottom out halfway up?
Does the suspension get compressed and cause damage?
Is enclosed transport the only safe option?
Those are the right questions. The answers depend on geometry, equipment, and operator skill.
The Real Risk Happens at the Ramp Transition
Damage rarely happens cruising down the highway. It happens during the first few feet of loading.
Three angles control everything:
Approach angle – how steep a ramp the front can climb before the bumper or splitter hits.
Breakover angle – how sharp a peak the car can crest without scraping the center.
Departure angle – how steep a decline the rear can handle without the diffuser or exhaust contacting.
Standard open carriers often use ramps close to 20 degrees. For many sports cars, that is too steep. A specialized setup reduces the effective loading angle to about 6 to 10 degrees.
Long-wheelbase cars add another complication. Even if two cars share the same ground clearance, the longer one is more likely to be high-center because the distance between the axles reduces the breakover angle. That is why some luxury sedans need gentler transitions than shorter sports cars.
A beavertail trailer design, where the rear of the deck slopes downward, softens that crest and reduces scraping risk.
Hydraulic Lift Gates for Extremely Low Cars
When clearance drops below 4 inches, ramps become risky. This is where hydraulic lift-gate systems matter.
Instead of driving up an incline, the vehicle rolls onto a flat platform that stays level while it rises. There is no steep approach. No breakover crest. No sudden angle change.
Professional lift-gates use synchronized hydraulic cylinders so the platform does not tilt under load. Mechanical safety lockouts prevent the platform from dropping if hydraulic pressure fails. Operators often control the lift remotely so they can walk around the car and watch clearances while raising it.
This setup is common in enclosed carriers built by manufacturers such as Kentucky Trailer, where interior deck systems are designed for low-profile vehicles.
Low Center of Gravity (LCG) Carriers
Not every low-clearance car requires a lift-gate. Many can load safely on Low Center of Gravity carriers.
LCG carriers sit about 5 to 6 inches lower than standard units, as outlined in Miller Industries’ 16 Series LCG specifications. When paired with an air-ride suspension that can release air at the rear, the effective load angle can drop below 11 degrees.
That lower angle is often enough for factory sports cars with 5 to 6 inches of clearance. The reduced deck height also improves stability during transit.
High-capacity multi-vehicle haulers such as the Cottrell CX-09LSFA Quickloader are engineered with contoured ramps and adjustable decks specifically to accommodate low and long-wheelbase vehicles.
Extended Ramps and Shallow Approaches
On open carriers without hydraulic systems, operators rely on ramp length and geometry.
Longer ramps flatten the angle. High-quality aluminum ramps often include a welded “kick-stop” block that locks against the trailer edge to prevent the ramp from sliding forward under tire torque. Manufacturers such as JIMGLO outline proper low-profile loading techniques in their low-profile loading guidance.
When necessary, operators place staggered wooden shims under the ramp base to reduce the initial approach angle. It looks simple, but it changes the geometry at the exact point where splitters usually scrape.
Securement Is a Federal Requirement, Not a Preference
Once the car is on the deck, federal law controls how it must be secured.
The Federal Motor Carrier Safety Administration outlines specific requirements under 49 CFR 393.128. The electronic version is available through the eCFR.
For vehicles weighing 10,000 pounds or less, securement systems must withstand:
0.8 g forward deceleration.
0.5 g rearward acceleration.
0.5 g lateral acceleration.
A minimum of two tiedowns is required, though four is standard practice in professional transport.
The FMCSA monitors compliance trends through its Safety Measurement System (SMS), which tracks carrier safety performance data.
For low-clearance cars, soft-tie systems are preferred. Instead of metal hooks on the frame, high-strength webbing wraps around the tires. Stellantis, for example, publishes detailed manufacturer loading sheets that require strap-based securement on low-profile models, documented in its official loading protocols.
By securing the tire rather than compressing the suspension, the vehicle maintains its static ride height during transit.
Unsecured loads are not theoretical risks. The National Highway Traffic Safety Administration highlights the dangers of shifting cargo in its Secure Your Load campaign. The Bureau of Transportation Statistics also tracks national freight and safety data through the BTS database.
Operational Oversight and Regulatory Context
Car hauling falls within a tightly regulated federal framework.
Hours-of-service exemptions and operational considerations for specialized carriers are published in the Federal Register. Industry groups such as SC&RA have submitted formal exemption petitions, available through the SC&RA exemption documentation.
The American Transportation Research Institute conducted a detailed analysis of specialized hauling practices in the SC&RA ATRI study. Federal Highway Administration guidance for pilot car and oversized load operations is outlined in the FHWA/SC&RA Pilot Car Guidelines.
Industry terminology such as cab-to-axle and stinger-steer configurations is defined in the NTEA Truck Equipment Glossary.
This regulatory environment exists to reduce load shift, rollover risk, and equipment failure. It directly affects how low-clearance vehicles are loaded and secured.
Enclosed vs. Open Transport for Low Cars
Open transport is often feasible for factory sports cars with at least 5 to 6 inches of clearance, provided the carrier has proper ramp extensions or tilt capability.
Enclosed transport adds protection from debris and weather. Enclosed carriers frequently use lift-gate systems and adjustable interior decks to eliminate steep ramp transitions.
The decision depends less on appearance and more on clearance, modification level, and exposure risk.
Market Forces Driving Specialized Equipment

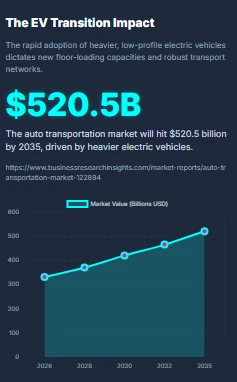

Auto transportation is a large and growing sector. Global projections from Coherent Market Insights and regional analysis from Business Research Insights forecast continued expansion in vehicle logistics through the next decade.
Service-type growth trends are documented by WiseGuyReports, reflecting increased demand for door-to-door vehicle delivery.
As vehicles become lower, heavier, and more specialized, carriers have adapted with LCG decks, hydraulic systems, and improved securement methods.
What This Means If You Are Shipping One
When working with AmeriFreight Auto Transport, the focus is on matching your vehicle’s ground clearance and configuration to the right carrier setup. Not every trailer can safely handle a car sitting under 4 inches from the pavement.
AmeriFreight Auto Transport offers Door-to-Door Service (Location Permitting), and there is no upfront payment until you choose a carrier. Customer service agents coordinate with vetted carriers to confirm loading capability before dispatch.
If your car has been lowered, fitted with an aggressive splitter, or uses adjustable suspension, disclose it clearly. That information changes ramp strategy and equipment selection.
